RB-F6-0402-Z04/ZG12
RBT
Machine Function
12 spindle horizontal machining center suitable for the drilling, tapping and milling of the bathroom ware faucet, hardware, casting pieces, car accessory, lock, door knob etc. Applicable to brass, zinc alloy, stainless steel, aluminum faucet or other hardware.
Machine Advantage
1.The horizontal turret structure has higher precision, stiffness and stability.
2.Constant and high speed motorized spindle, high precision, good reliability.
3.12 spindle, change tools automatically and quickly
4. One-time clamping and 4 degree of free rotation, no dead angle processing four faces.
5. Taiwan Syntec CNC control system, high speed, accurate precision, convenient operation.
6. Automatic chip conveyor included.
7.The machine adopts Taiwan HIWIN precision roller linear guide; adopts Taiwan HIWIN C3 grade precision screw rod. Ball screw has enough precision, strength, rigidity and wear resistance. High quality (imported) large contact Angle (60º) ball screw special bearing support is adopted to ensure that the supporting mechanism has enough rigidity and precision stability.
8. The base adopts cast iron bed, which is firm and not easily deformed.
9. Adopt timing and quantitative automatic centralized oil supply lubrication system to ensure that any lubricating part can be fully lubricated.
10. Compatible with MasterCAM,ArtCAM,Pro-E,UG,AutoCAD and other programming software

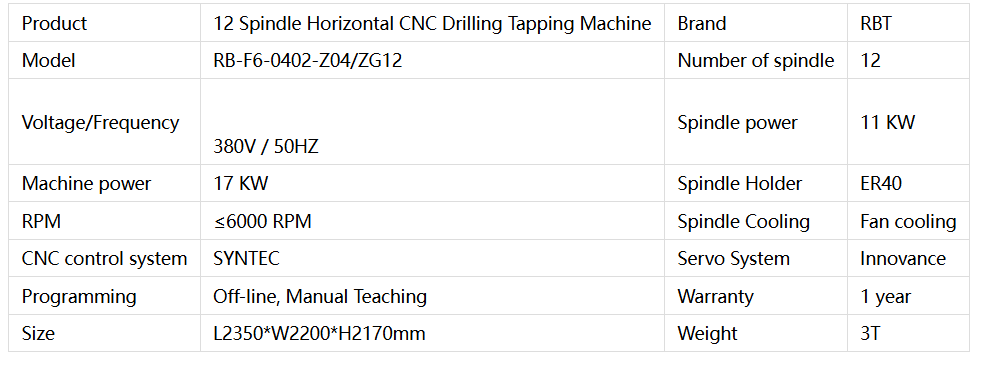

Technical Parameters
Laser interferometer precision testing
CE Ceratificate
Cooperation customers
Packing & Delivery
